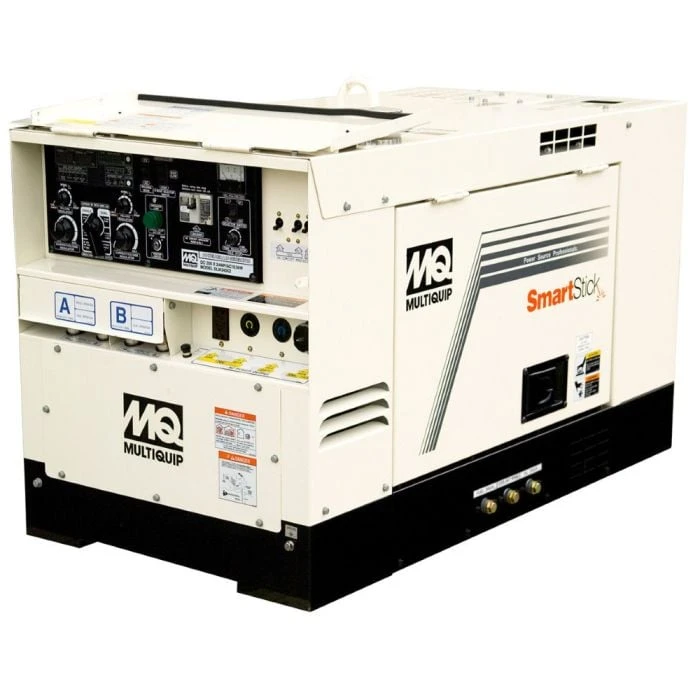

Multiquip SDW225SSA1 Welder Generator 225A T4F Kubota

Multiquip SDW225SSA1 Welder Generator

* Requires Adapter kit, ** Optional TRLRMPXF has a built in 28 gal. fuel cell

Features:

• Delivers up to 225 amps as a welder with the convenience of 6 kW of AC power as a generator
• Can draw simultaneous AC power while welding
• Quality voltage regulation @ 2% (+/-)
• Tier 4 final Kubota diesel – Model Z482
• Smooth arc characteristics and more consistent, quality weld penetration
• SMAW, FCAW, GMAW, GTAW and ACAC welding processes
• Sound attenuated cabinet reduces noise output to 68.7 dBA @ 23′
• Full panel GFCI protection – OSHA and NEC compliant
• Available in a light tower configuration as the MLTSDW7
• Options – Wire remotes, welding cable, cable carriers, tool box, trailers, cold weather items are available for this model.

Unit Specifications

• DC Voltage CC: 28 V CV: 28 V
• DC Current CC: 225 A CV: 225 A
• Current Range 50-225 A
• Max Duty Cycle
• w/ Full Amps Availible 100% @200 A
• Welding Processes SMAW
• FCAW
• GMAW
• GTAW
• ACAC
• Fuel Tank Capacity 6.6 gal 30 L
• Fuel Consumption
• at Rated Load 0.6 gph

Generator Specifications

• AC Power Output
• (Single Phase) 6 kW
• Cycle 50/60 Hz
• Voltage 120/240 V
• Amperage 50/25 A
• Voltage Regulation 2 %
• Receptacles NEMA 5-20R 125V GFCI 20A
• NEMA L5-30R 125V Twist-Lock 30A
• NEMA L14-30R 125/250V Twist-Lock 30A

Dimensions & Weights

• Overall Length 45 in 114 mm
• Overall Width 26 in 66 mm
• Overall Height 31 in 80 mm
• Shipping Dimensions 46 x 26 x 36 in
• 116.8 x 66 x 91.44 mm
• Operating Weight 671 lb 305 kg
