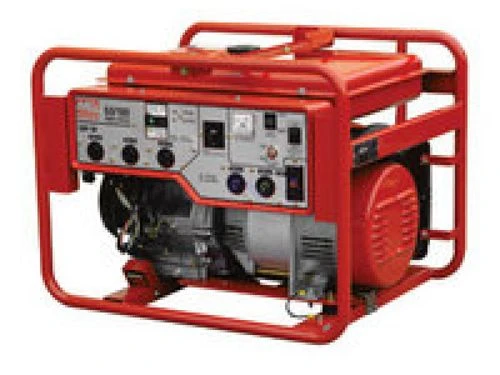

Multiquip GDP5HA Generator High-Cycle Portable 5kW 180Hz – 4kW 60Hz 11HP Honda

Multiquip GDP5HA High-Cycle Portable Generator

5kW/180Hz-4kW60Hz, 11-HP Honda

The Multiquip GDP5HA Generator is a high-cycle portable generator that delivers 5kW/180Hz-4kW60Hz and is powered by a  11 hp Honda GX340 engine. It is the industry’s only generator that simultaneously produces 60Hz/180Hz power for standard tools and high-cycle vibrators.

• Powers up to three 2-inch (50 mm) FXA-series high cycle vibrators
• Folding lifting bale is standard equipment
• Control panel has separate 60Hz and 180Hz outlets
• Full panel GFCI protection – OSHA and NEC compliant
• Standard voltmeter assists in troubleshooting
• Produces 3.6kW of continuous 120/240-volt 60-cycle power for standard power tools



Unit Specifications

Alternator Design	Brushless Revolving Field Type
Fuel Tank Capacity	5 gal	19 L
Frequency	60/180 Hz



60HZ Power Output

Phase	Single
Continuous Output	3.6 kW
Maximum Output	4 kW
Voltage	120/240 V
Continuous Amps	30A @ 120V	15A @ 240V
Maximum Amps	33A @ 120V	16.5A @ 240V



180HZ Power Output

Phase	3-Phase
Continuous Output	5 kVA
Voltage	230 V
Continuous Amps	12.5 A
