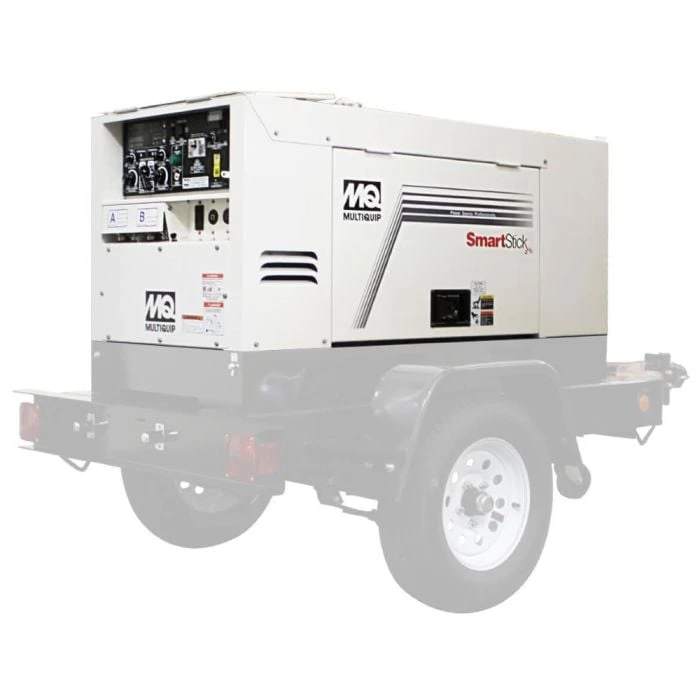

Multiquip DLW400ESA4 400 Amp Welder 120/240V Kubota D902

Multiquip DLW400ESA4 – Welder

Trailer Not Included.

Features:

• Draws simultaneous AC power while welding
• The convenience of one-man or two-man opeation
• Delivers up to 400 amps as a welder, 14kW of AC power
• Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes froms sticking during short arc length welding
• Smooth arc characteristics and more consistent, quality welds
• Super clean voltage regulation 1.5% (+/-)
• Tier 4 final Kubota diesel engine D902
• E-mode improves fuel efficiency b allowing oprator to weld at idle up to 240 amps
• Noise level produces only 70 dBA
• Full panel GFCI protection – OSHA and NEC compliant Smart stick sensor to automatically shut off the engine during periods of no load and restart when operator strikes the welding rod

Unit Specifications

• DC Voltage CC: Single 34V, Dual 27V V CV: Single 35V, Dual 28V V
• DC Current CC: Single 400, Dual 200 A CV: Single 400, Dual 200 A
• Current Range Single 30-400, Dual 30-200 A
• Max Duty Cycle
• w/ Full Amps Availible 100% @Single 350, Dual 175 A
• Welding Processes SMAW
• FCAW
• GMAW
• GTAW
• ACAC
• Fuel Tank Capacity 11.1 gal 42 L
• Fuel Consumption
• at Rated Load 1.3 gph
• Generator Specifications
• AC Power Output
• (Single Phase) 14 kW
• Cycle 60 Hz
• Voltage 120/240 V
• Amperage 116/58 A
• Voltage Regulation 1.5 %
• Receptacles NEMA 5-20R 125V GFCI 20A
• NEMA L5-30R 125V Twist-Lock 30A
• NEMA L6-30R 250V Twist-Lock 30A
• CS-6369 125/250VAC Twist-Lock 50A
• **Optional TRLRMPXF has a built in 28 gal. fuel cell

Dimensions & Weights

• Overall Length 61 in 1550 mm
• Overall Width 29 in 737 mm
• Overall Height 35 in 890 mm
• Shipping Dimensions 63 x 30 x 41 in
• 1600 x 762 x 1041 mm
• Operating Weight 1144 lb 519 kg
• Shipping Weight 1027 lb 466 kg
