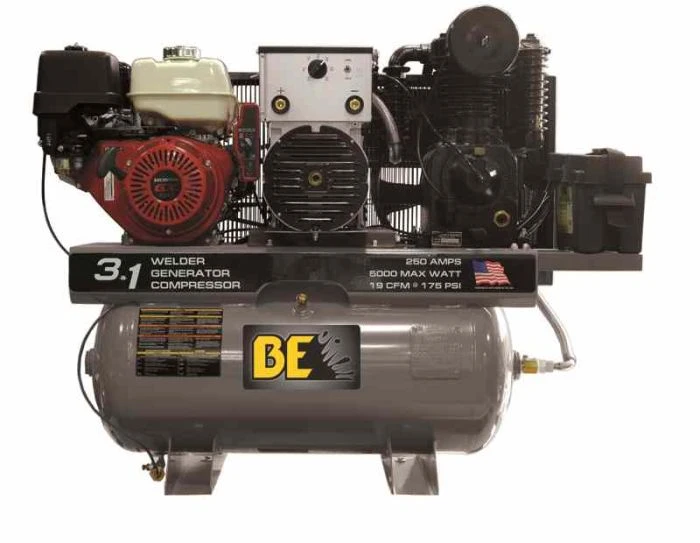

BE AC1330HB3000W 30 Gallon Compressor / Welder / Generator

BE AC1330HB3000W 30 Gallon – Compressor / Welder / Generator

Features:

• 389cc Honda GX390 engine
• Electric start with battery
• 30 Gallon
• Access to compressor valves wihtout compressor head removal
• Cast iron pump
• Bearings on both ends of the crank shaft
• Full saddle mounting feet instead of pegged mounting feet
• Alternator on driven engine
• Pilot valve continuous operation



• Compressor Features:
• 22 CFM @ 100 PSI
• 19 CFM @ 175 PSI
• Heavy duty 2 stage pump
• For added torque received at 175 PSI
• Disc and spring valve
• For an industrial grade, instead of a reed or flapper style valve
• Head unloaded
• For a lower fuel cost and pump cooling
• Centrifugal unloader, large bore
• Bleeds head pressure down after cycle to save hard starts on the engine
• Belt guard air cooler
• Compressor discharge air cooled from up to 400F to 15F above ambient air, removes moisture from air and reduces tank and air line heat
• Automatic tank drain
• On-board battery mounted and wired
• No wiring to the front of the truck needed

• Generator Features:
• 5500 MAX AC output
• 5000 AC Continuous output
• 110/220 Volt outlets
• 41 AMPS @ 120 VOLT
• 20 AMPS @ 240 VOLT

• Welder Features:
• AMP Range – 180 – 250A
• Duty cycle – 250 AMPS @ 70%
• DC Voltage – 120 – 180A
